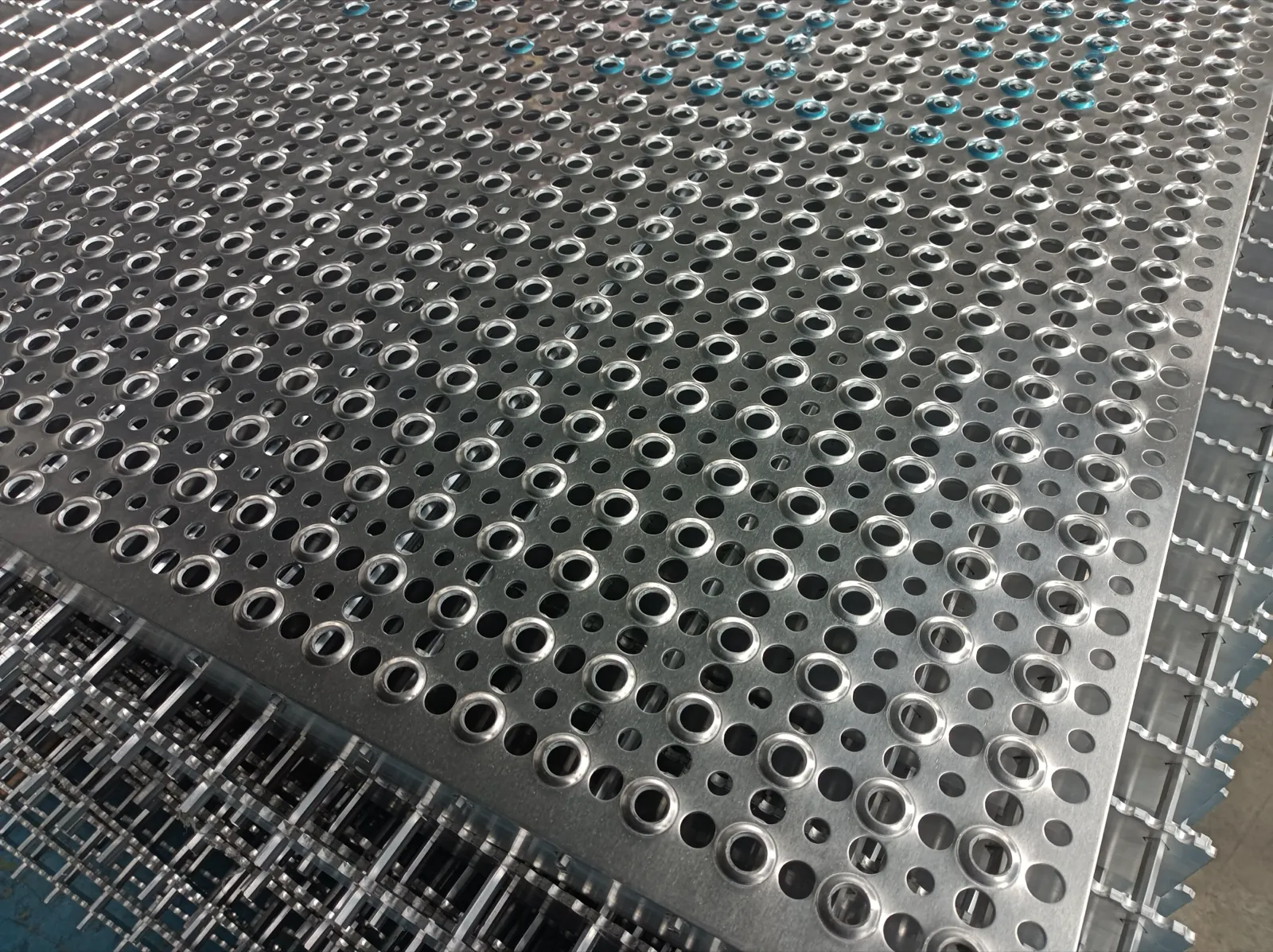

Aluminum grating stacked panels ready for shipment
Product Overview
Aluminum grating is a lightweight, corrosion-resistant panel used for industrial platforms, walkways, and architectural applications. Its low weight reduces structural load and simplifies handling and installation.
Choose aluminum grating when you need a durable, low-maintenance surface that performs well outdoors and in marine or humid environments without the weight of steel.
Product Gallery
Real photos from the SHEDAR Grating product library. Distinct from the main image above.

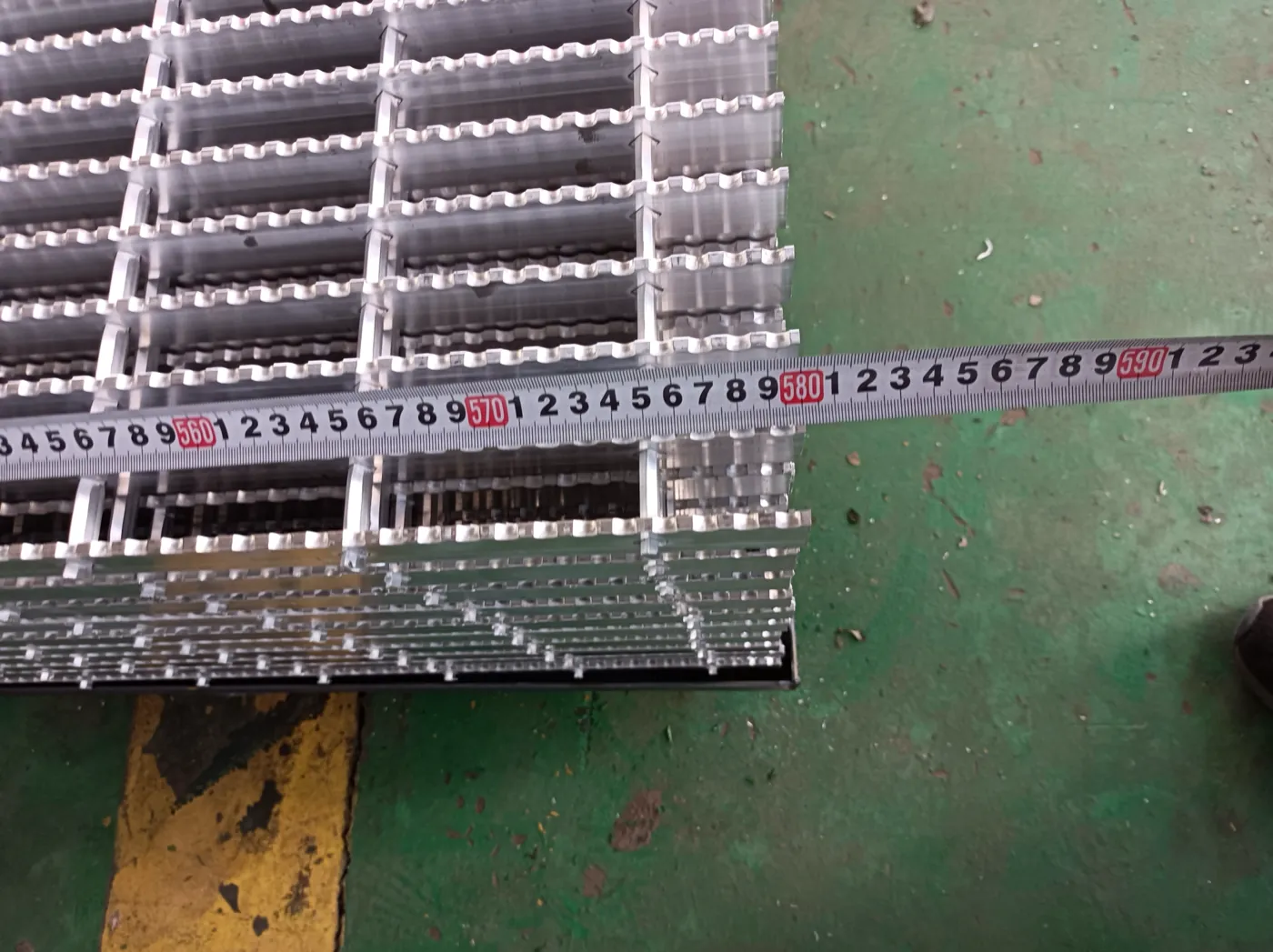

Aluminum grating panel — swage-locked construction close-up

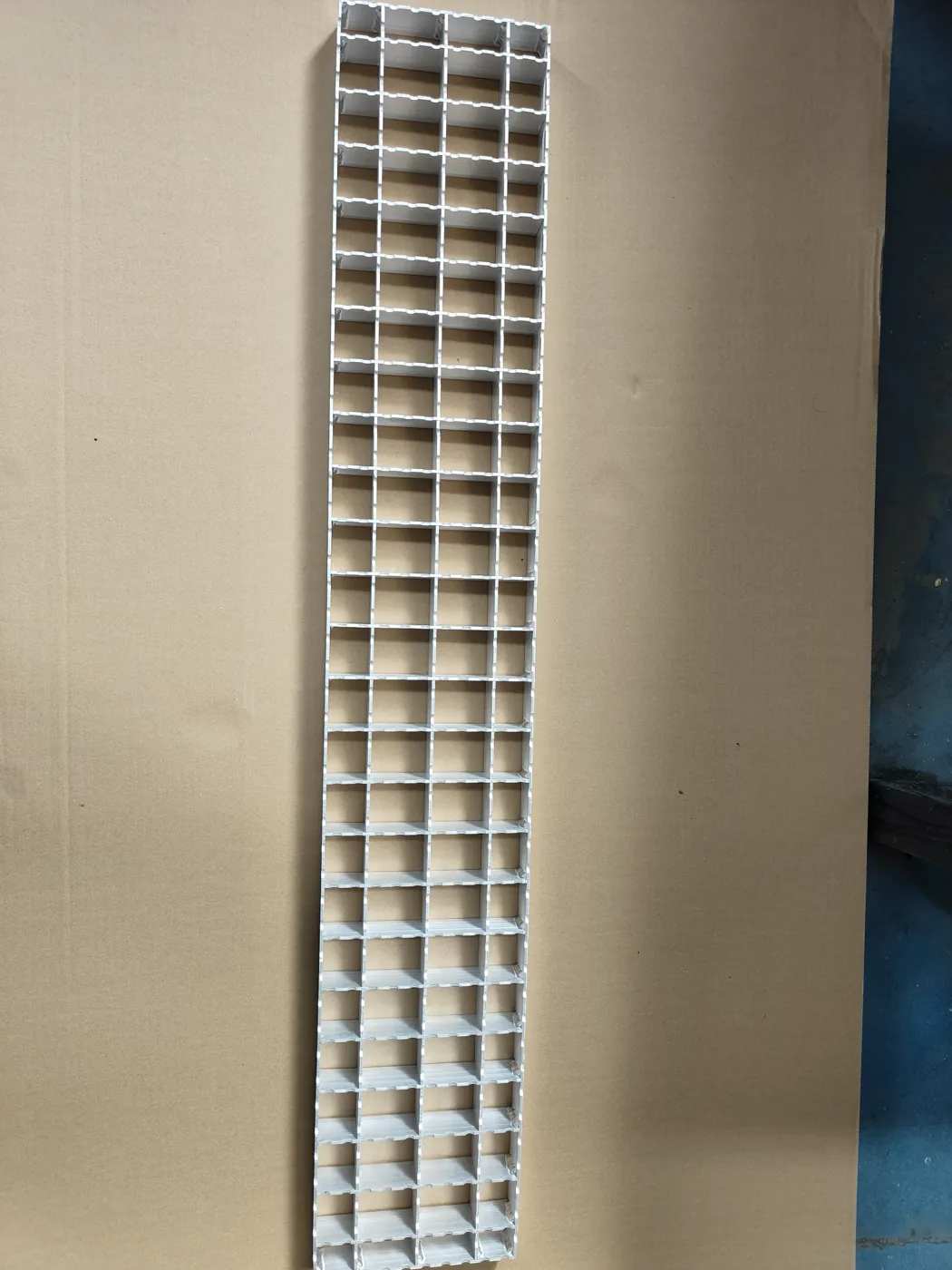

Aluminum grating sample — bearing bar detail

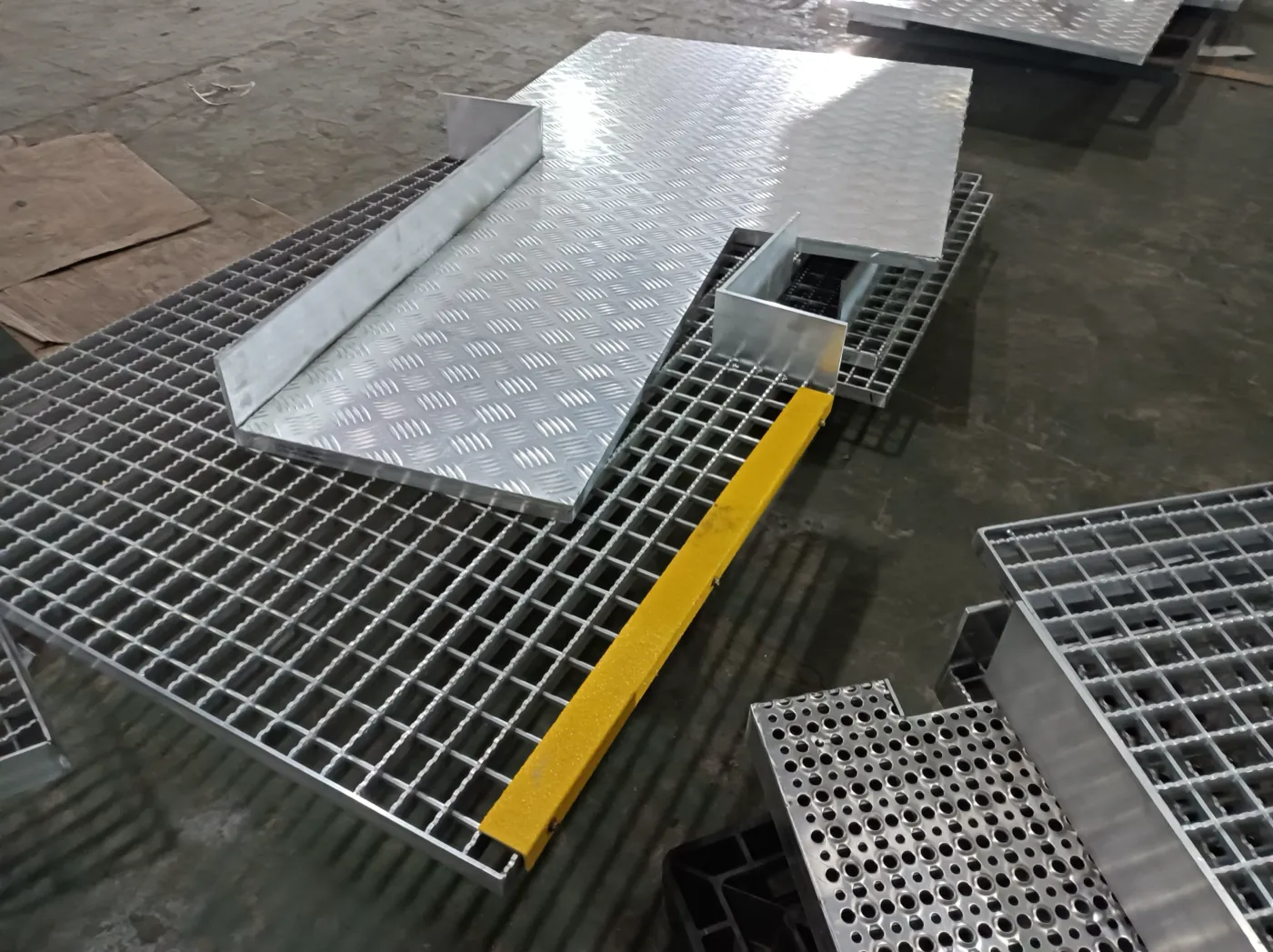

Aluminum grating panels on factory floor
Specifications
Typical / available options. Final values are confirmed against your requirements.
Bearing bar sizes
20×3, 25×3, 30×3, 40×3, 50×6 mm (typical)
Bar spacing (pitch)
33.3, 40, 60, 100 mm (typical)
Panel size
Up to approx. 3000 × 1000 mm; cut to size on request
Alloys
6063-T5, 6061-T6, 3003 (typical)
Construction
Swage-locked, serrated, I-bar, sunshade, dovetail
Materials
6063-T5 aluminum
6061-T6 aluminum
3003 aluminum
Surface Treatment
Mill finish
Anodized (clear or colored)
Powder coated
Sizes & Customization
Panel dimensions, bearing bar size, and bar spacing are confirmed against your drawings. Non-standard sizes and cutouts are available on request.
Applications
Industrial platforms and walkways
Architectural facades
Aviation maintenance platforms
Sunshade and louvers
Marine applications
Advantages
Lightweight — low structural load and easy handling
Naturally corrosion-resistant; no coating required for basic outdoor use
Non-magnetic and non-sparking where required
Low maintenance with a long service life
Good heat dissipation and drainage
Packing & Shipping
Panels are bundled and secured for export — typically palletized or crated with edge protection and moisture barrier. Documents (packing list, shipping marks) are prepared to match your order and destination requirements.
Frequently Asked Questions
Is aluminum grating suitable for heavy vehicle traffic?
Aluminum grating is ideal for pedestrian platforms, walkways, and light-to-medium loads. For heavy-duty or vehicle traffic, steel grating is usually the better choice. Share your load requirements and we will recommend the right material.
Can I get custom panel sizes?
Yes. Panel length, width, bearing bar size, and bar spacing are confirmed against your drawings, including cutouts and edge banding.
What surface finish should I choose?
Mill finish suits most general uses. Anodizing adds surface hardness and color options; powder coating provides a specific architectural color. We can advise based on your environment.
