Steel grating with yellow safety nosing edge banding
Product Overview
Steel grating provides high load-bearing capacity for heavy-duty industrial platforms, trench covers, and walkways. It is available in welded and press-locked constructions.
Choose steel grating for applications with heavy point loads, vehicle traffic, or where a cost-effective high-strength panel is required.
Product Gallery
Real photos from the SHEDAR Grating product library. Distinct from the main image above.

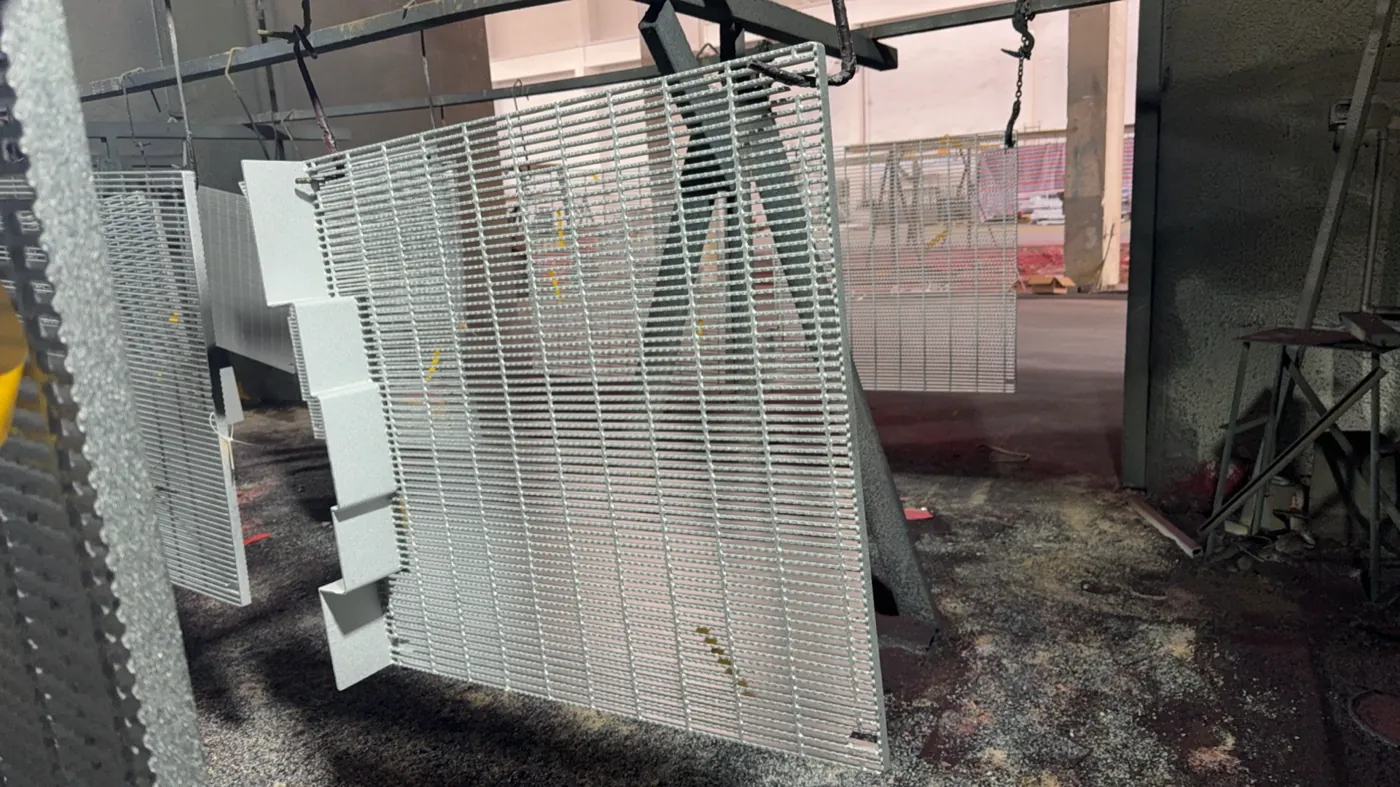

Steel grating panels in factory production
Stacked galvanized steel grating panels
Specifications
Typical / available options. Final values are confirmed against your requirements.
Bearing bar sizes
25×3, 30×3, 40×5, 50×5, 60×5 mm (typical)
Bar spacing (pitch)
30, 40, 50 mm (typical)
Panel size
Up to approx. 6000 × 1000 mm; cut to size on request
Material
Carbon steel (mild steel)
Construction
Welded, press-locked, serrated, heavy-duty
Materials
Carbon steel (mild steel)
Stainless steel on request (see backlog)
Surface Treatment
Hot-dip galvanized
Painted / coated
Untreated (mill finish)
Serrated anti-slip surface
Sizes & Customization
Bearing bar size, bar spacing, and panel dimensions are confirmed against your load and span requirements. Serrated bars improve slip resistance for inclined or wet areas.
Applications
Heavy industrial platforms
Trench covers
Factory floors
Bridge walkways
Power plant flooring
Advantages
High load-bearing capacity for heavy industrial use
Panels are bundled and secured for export — typically palletized or crated with edge protection and moisture barrier. Documents (packing list, shipping marks) are prepared to match your order and destination requirements.
Frequently Asked Questions
What is the difference between welded and press-locked steel grating?
Welded grating joins bearing bars and cross bars by welding for maximum strength; press-locked grating locks bars together under pressure for a clean, uniform appearance. Both suit heavy-duty use.
Should I choose galvanized or painted finish?
Hot-dip galvanizing is standard for outdoor and industrial environments because of its durability. Painted finish is used mainly for color matching or indoor use.
Can steel grating support forklift traffic?
Yes, with the correct bearing bar size and span. Provide your expected wheel loads and span so we can confirm the right specification.
Need a quote for Steel Grating?
Send us your specifications and receive a detailed quotation.
